*  Ethernet
   IEEE 802.3 Ethernet
  10 MB/sec 10BASE-T
  RJ-45 Connector
  16 bit interface
  Full duplex operation
  Automatic polarity detection/correction
  Packet driver included
  NE2000 Compatible
Serial Ports
  COM3 - wired as DTE
  COM4 - wired as DCE
  RS-232 signal levels
  16C550 High Speed UART
  16 Byte FIFO for each port
  Configurable Interrupts
  (3,4,5,6)
  115kB maximum speed
Parallel port
  Bi-directional
  DOS compatible as LPT1

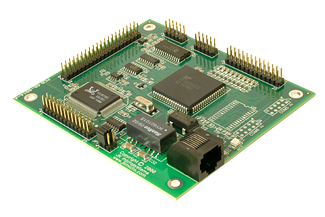

For Flashlite 386Ex single board computer users requiring local area network connectivity, the Ethernet/Serial/Parallel peripheral board can add Ethernet as well as additional serial ports.

This peripheral board combines a highly integrated, full function, IEEE 802.3 Ethernet controller with 16C550 high speed UARTs (with FIFO) and bi-directional parallel port. The Ethernet port is a 16 bit design that supports a direct connection to 10BASE-T networks, jumperless configuration and internal receive and transmit frame buffers to reduce CPU overhead and maximize throughput. The 2 PC compatible serial ports and the parallel port provide additional I/O necessary for many demanding applications. These features quickly make the Flashlite 386Ex single board controller a versatile platform for networking, embedded control, web server and serial protocol conversion applications.

Ethernet Upgrade Serial/Parallel Kit (99-0019) Convert your Flashlite 386Ex into our FlashTCP. This upgrade kit for Flashlite 386Ex SBC packages the Ethernet/Serial/Parallel peripheral board, interface cables, standoff kit, users manual and schematic.

For users needing to add serial or parallel ports without Ethernet to a Flashlite 386Ex embedded SBC, see our Serial/Parallel peripheral board page.
Ethernet Upgrade Serial/Parallel Kit - $129.00 (Quantity 1)
Ethernet Upgrade - $119.00 (Quantity 1)
