* Serial Ports
COM3 - wired as DTE
COM4 - wired as DCE
RS-232 signal levels
16C550 High Speed UART
16 Byte FIFO for each port
Configurable Interrupts
(3,4,5,6)
115kB maximum speed
* Parallel port
Bi-directional
DOS compatible as LPT1
* Optional 8 Channel, 12-bit A/D for use with LogicFlex controller

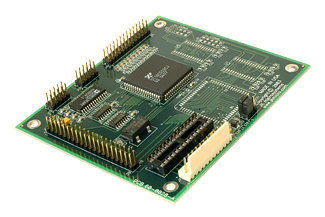

The Serial/Parallel peripheral boards combine 16C550 high speed UARTs (with FIFO) and a bi-directional parallel port for users requiring additional peripherals. PC compatible serial and parallel ports provide additional I/O necessary for many demanding applications.
(Serial/Parallel Peripheral Kit for LogicFlex 99-0032) includes the Serial/Parallel board, 2 board 40 pin bus cable, standoff kit, and manual.
The optional (Serial Parallel A/D Upgrade Kit 99-0033) adds 8 channels of 12-bit A/D to the Serial/Parallel board. The A/D option is based on the Maxim MAX197 chip which features software-selectable input ranges of +/-10V, +/-5, 0V to 10V, and 0V to 5V.
Serial/Parallel - $69.00 (Quantity 1)
Serial Parallel A/D Upgrade Kit - $29.00 (Quantity 1)
Serial/Parallel Peripheral Kit - $79.00 (Quantity 1)
