* 2 USB Ports, 1 internal    * 5V DC Power
    * Linux Kernel 2.6 installed* 2 Serial Ports
    * 200MHz ARM 9 processor      * Watchdog & Audio In/Out
    * 16MB Flash, 32MB RAM * Hardware Clock/Calendar
    * 10/100 Base-T Ethernet * Optional Enclosure with Buttons and LCD
    * 16 Digital I/O Lines

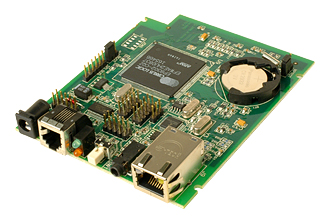

USB, ethernet, and audio capabilities can now be a part of your design with the OmniFlashEP. It is perfect for handling complex operations with fast timing requirements.

The OmniFlashEP offers a variety of I/O including serial, Ethernet, a clock/calendar, and even audio capabilities! Expansion becomess easy for whatever else you may need through the USB interface that is accessible outside the optional enclosure. To handle all these new features, the OmniFlash comes equipped with a 200Mhz ARM processor, 32 MegaBytes RAM, and 16 MegaBytes Flash.

The OmniFlashEP single-board micro-controller comes preloaded with the Linux operating system and all the utilities you need to start development. Our low-cost development kit contains a bootable development CD, eliminating the hassles of getting a cross compiling environment set up. Additionally the source code for a number of demonstration programs is included on the CD.

Free technical support is available, by support@jkmicro.com or our web-based support forums, to help you get your OmniFlashEP application running quickly.

See Solutions for applications using our products.

The OmniEP Development Kit (99-0145) includes an OmniEP controller, Programming Cable, Connector Kit, 110 VAC Adapter, Setup Guide, Schematic and Bootable CD with GCC C/C++Compiler, sample programs and documentation.

prototyping kit (99-0068) is also available for convenient development of hardware peripherals.
Controller Only (84-0145)
Enclosed version with LCD and buttons (89-0145)
$249.00 - (Quantity 1)
$169.00 - (Quantity 1)
OmniEP Simple Enclosure Assembly - $189.00 (Quantity 1)
OmniEP Development Kit - $279.00 (Quantity 1)
