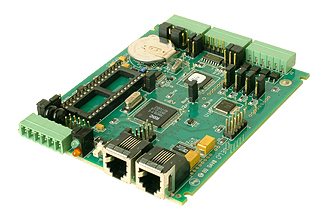

Remote data collection and mobile control just became easier with the new DataMover. Drawing just 100 milliamps at 5Volts during regular operation, the DataMover can be easily set to run off of battery power.
A small form factor of 3.4x4.2 inches, the DataMover is packed with configurable I/O. The 12 digital I/O lines are jumper configurable for up to 4 channels A/D, up to 4 opto-isolated inputs, and/or 4 output drivers. The second serial port can be configured for either RS232 or RS485.
Many optional features are available, allowing you to customize the controller for your specific application. Access the DataMover remotely using the optional GPRS Cell Modem, or pinpoint its location with the optional JK-GPS attachments. Not only will the PowerAux attachment allow for input voltages from 8-40 V DC, but it will also allow the DataMover to go into a micro-amp range sleep mode! All of these attachments can fit nicely in the optional rugged enclosure. As with many of our products, you can also increase the storage capacity with the DiskOnChip memory module.
Free technical support is available, by support@jkmicro.com or our web-based support forums, to help you get your project completed
The DataMover Development kit (99-0150) includes a DataMover controller (no enclosure), Programming Cable, Connector Kit, 110 VAC Adapter, Setup Guide, Schematic and CD with GCC C/C++Compiler, sample programs and documentation.
DataMover Cell, PowerAux, GPS Development Kit (99-0158) includes a DataMover controller + Cell Modem w/ enclosure, PowerAux, GPS 110V and Borland C compiler. A prototyping kit (99-0068) is also available for convenient development of hardware peripherals.
* Ultra Low Power
* Flash File System* Driver Outputs
* Flash File System* Driver Outputs* 20MHz x86 processor * 512KB Flash, 1MB RAM * Hardware Clock/Calendar
* 512KB Flash, 1MB RAM * Hardware Clock/Calendar* 12-bit A/D input * Optically Isolated Inputs * Optional Rugged Enclosure
* Optically Isolated Inputs * Optional Rugged Enclosure * Up to 12 Digital I/O Lines
* 2 Serial Ports, 1 - RS232 (3-wire), 1 - RS232/RS232 TTL/RS485
* Optional GPRS Modem and/or GPS
* 5V DC Power
Controller Only (84-0150)
DataMover Basic Enclosure Assembly (89-0150)
$236.00 - Quantity 1
$179.00 - Quantity 1
DataMover Options
Enclosed Versions
DataMover Basic Enclosure Assembly (89-0150)
DataMover + PowerAux Enclosure Assembly (89-0151)
DataMover + GPS Enclosure Assembly (89-0152)
DataMover + GPS/PowerAux Enclosure Assembly (89-0153)
DataMoverCELL Enclosure Assembly (89-0155)
$295.00 - Quantity 1
$236.00 - Quantity 1
$301.00 - Quantity 1
$360.00 - Quantity 1
$400.00 - Quantity 1
DataMoverCELL + PowerAux Enclosure Assembly (89-0156)
$459.00 - Quantity 1
DataMoverCELL+ GPS Enclosure Assembly (89-0157)
DataMoverCELL+GPS/PowerAux Enclosure Assembly (89-0158)
$524.00 - Quantity 1
$465.00 - Quantity 1
DataMoverCELLIP + PowerAux Enclosure Assembly (89-0159)
$459.00 - Quantity 1
Non - Enclosed Versions
DataMover Controller Only (84-0150)
$179.00 - Quantity 1
DataMover w/ PowerAux (87-0151)
$238.00 - Quantity 1
DataMover w/ JK-GPS (87-0152)
$244.00 - Quantity 1
DataMover w/ JK-GPS & PowerAux (87-0153)
$303.00 - Quantity 1
DataMoverCELL with GPRS Cell Modem (87-0155)
$343.00 - Quantity 1
DataMoverCELL GPRS Cell Modem + PowerAux (87-0156)
$402.00 - Quantity 1
DataMoverCELL GPRS Cell Modem + JK-GPS (87-0157)
$408.00 - Quantity 1
DataMoverCELL GPRS Cell Modem + GPS/PowerAux (87-0158)
$467.00 - Quantity 1
DataMoverCELL GPRS Cell Modem IP + PowerAux (87-0159)
$402.00 - Quantity 1
